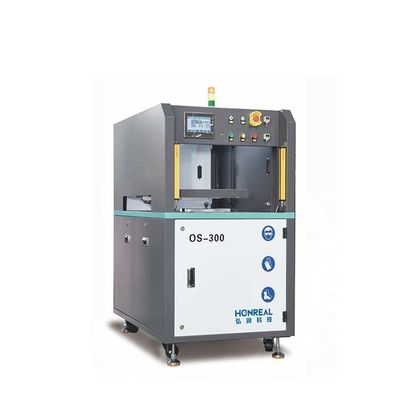

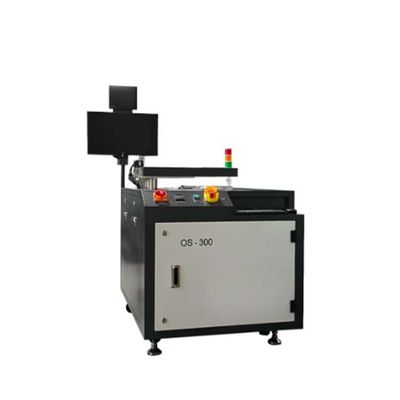

| MOQ: | 1セット |
| 価格: | USD 19500-23000 Per Set |
| standard packaging: | 木製のボックスパッケージをエクスポートします |
| Delivery period: | 30営業日 |
| payment method: | T/T,ウェスタンユニオン,マネーグラム |
| Supply Capacity: | 1000セット/年 |
| Dimension | 850L*1100W*1400H (mm) |
| Max carrier size | Max:330(L)*250(W)(mm) |
| Temperature setting range | Max400 ℃ |
| Position accuracy | + / - 0.05 mm |
| Solder pot capacity | 15 kgs /PCS |
| Preheat method | Upper IR heating |
| General Specifications | |
|---|---|

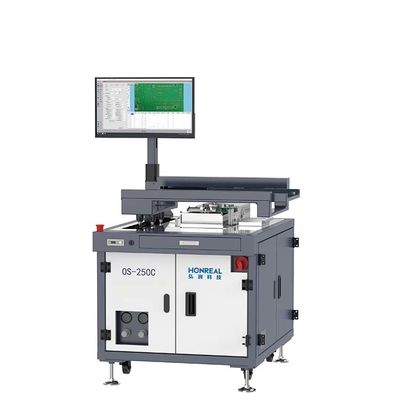

| Model | OS-250C |
| Overall Dimensions | 850L*1100W*1400H (mm) |
| Machine frame and cover | Tube frame + Door with painting |
| Operating height | 900+30mm |
| Weight | Approx.240KG |
| Power supply | 1φ 220V 50/60HZ |
| Total power | 5.5KW |
| PCB Parameters | |
| PCB size | Min:60(L)*40(W); Max:330(L)*250(W)(mm) |
| Top component height | Max130mm |
| Bottom component height | Max30mm |
| PCB Weight | Max 5Kg |
| PCB Process Edge | >3mm |
| Selective Spray System | |
| Spray movement mode | PCB movement in XYZ axis |
| Spray flux volume | 2L |
| Spray flux add mode | Manual |
| Spray nozzle type | Needle |
| Spray cycle time | 1 Sec/soldered dot (The minimum spray time can be set to 0.2 seconds) |
| Spray movement precision | 0.05mm |
| Spray flow control | pressure gage + flow valve |

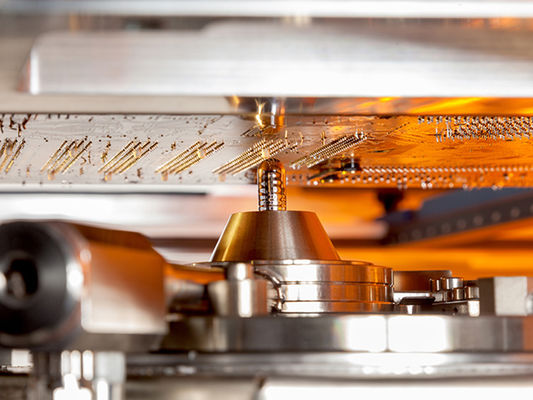

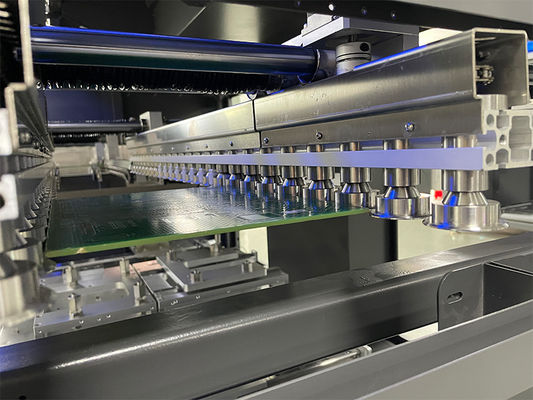

| Selective Soldering System | |
| Welding movement mode | PCB movement in XYZ axis |
| Movement mode | Step motor + linear rail |
| Solder feeding mode | Manual (Option: auto) |
| Solder capacity | 16KG |
| Solder melting time | 30min |
| Solder power | 3.3KW |
| Solder nozzle size | Standard D8mm, other sizes is option |
| Solder cycle time | 2~6 Sec/ soldered dot |
| Temperature control mode | PID+SSR |
| Temperature setting range | Max400 ℃ |
| Temperature accuracy | ±2 ℃ |
| Waver height | Max 5mm |
| Welding precision | 0.1mm |
| Solder dross | 0.2Kg/8H(N2 protection) |
| N2 Protection System | |
| N2 protection mode | Nozzle and solder pot |
| N2 consumption | 1.5M3/h(Nitrogen concentration>99.999%) |
| N2 flow control | Digital flow control |
| Exhaust System | |
| Top cover exhaust | Customer supply |
| Exhaust quantity | 1 PCS |
| Exhaust volume | About 5m³/min |
| Control System | |
| Control mode | PC+ motion control card |
| PCB Process parameter | Setting, save, open in the PC screen |
| Other | PCB counting, message, alarm can be read in the PC |
| Welding real-time monitoring | |
| Options | |
| Top safe cover | |
| Safety light curtain | |
| Top heater system | |
| Barcode scanner | |
| Easy-damaged parts | |
| Spray flux nozzle, Soldering nozzle | |
